We offer two types of roof guard rails, each catering to different needs:
+ Fixed Guard Rail
- Permanent and highly visible for continuous protection
- Ideal for buildings where ongoing maintenance is required
- Provides a clear safety perimeter for workers
+ Foldable Guard Rail
- Collapsible design for low visual impact—perfect for heritage or aesthetic-sensitive buildings
- Folds down when not in use, keeping rooftops unobtrusive
- Still offers full compliance with Australian safety regulations
At Safetylyne, we provide high-quality roof safety rail systems designed to protect workers from falls while accessing rooftops. Our permanent and foldable guard rails systems offer durable, compliant, and easy-to-install solutions for a wide range of industries, ensuring safe working conditions at heights.
Whether for satellite maintenance access, HVAC servicing, roof inspections, or general maintenance, our roof guard rails provide secure perimeter protection -reducing the risk of falls and ensuring compliance with
Australian height safety standards.

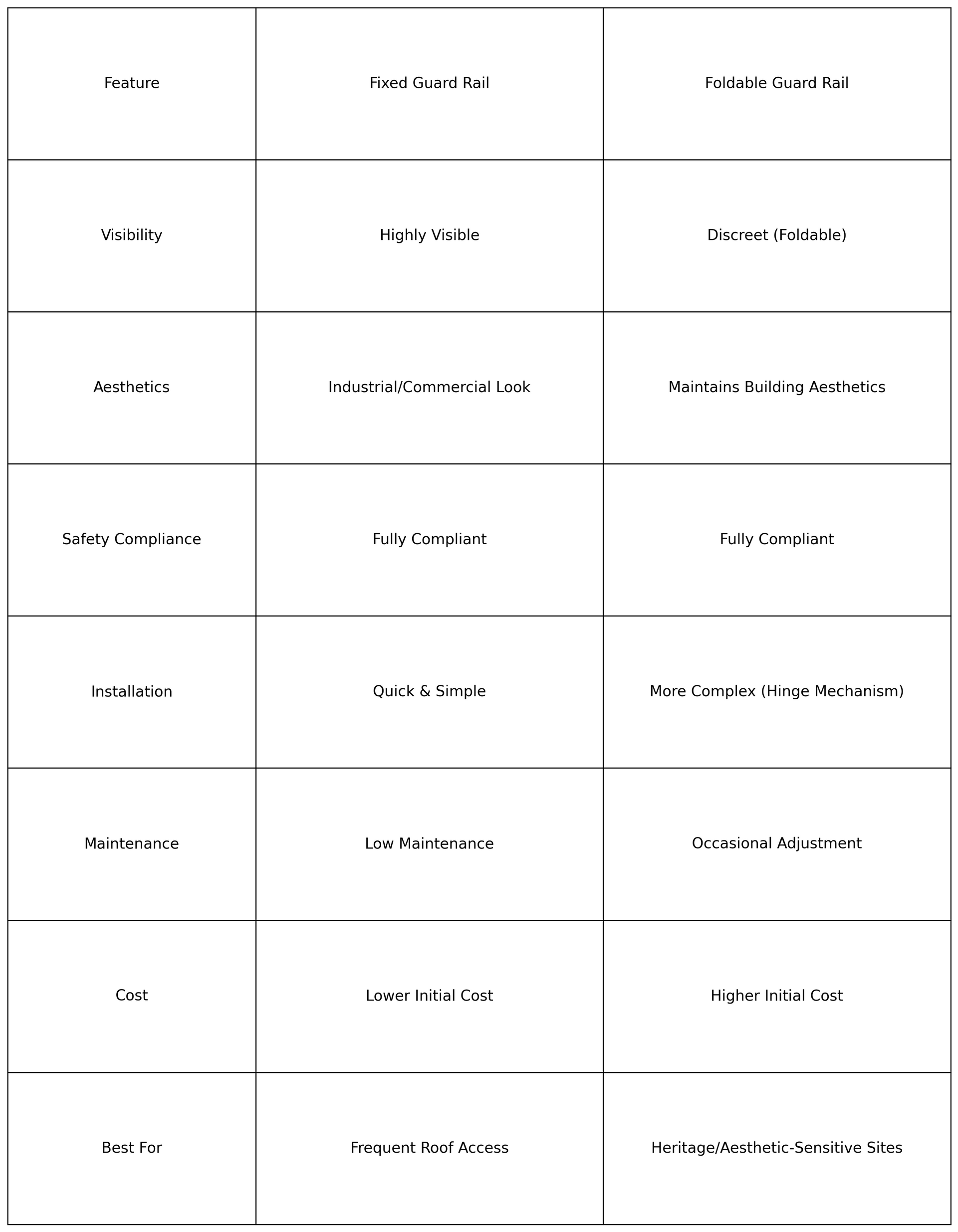

Factors to Consider When Choosing a Roof Guard Rail System
When selecting the right roof safety rail system, engineers, designers, site managers, and architects need to consider several key factors. The choice between a fixed or foldable guard rail depends on the project’s specific requirements, aesthetics, compliance, and long-term maintenance needs.
1. Compliance with Australian Safety Standards
Ensuring compliance with AS/NZS 1657 (fixed platforms, walkways, stairways & guardrails) and AS/NZS 1891.4 (fall arrest systems) is crucial. Site managers and safety officers must ensure that the selected guard rail meets all legal requirements for edge protection to avoid non-compliance risks.
2. Visual & Aesthetic Impact
Architects and project designers often need to balance safety and aesthetics, especially in commercial buildings, heritage sites, and residential projects.
- Fixed guard rails provide constant, visible protection, making them ideal for industrial sites, warehouses, and areas where ongoing maintenance is expected.
- Foldable guard rails can be lowered when not in use, preserving the building’s visual appeal while still ensuring safety when needed.
3. Frequency of Roof Access
How often will workers need access to the roof?
- If the roof is accessed frequently (e.g., for HVAC maintenance, solar panel servicing, or routine inspections), a fixed guard rail is the best choice as it offers continuous protection.
- If the roof is accessed occasionally, a foldable guard rail may be a better option to maintain aesthetics without compromising safety.
4. Long-Term Durability & Material Selection
Engineers must assess environmental conditions such as weather exposure, wind loads, and corrosion resistance when selecting a guard rail system.
- Aluminium is the preferred choice for many height safety applications due to its lightweight strength, corrosion resistance, and low maintenance requirements. Unlike steel, aluminium does not rust, making it ideal for coastal, industrial, and high-exposure environments where durability is critical.
- Safetylyne primarily works with aluminium because it provides a high strength-to-weight ratio, ensuring easy installation without adding excessive load to the structure. Additionally, aluminium is non-sparking, non-magnetic, and environmentally friendly, making it a safer and more sustainable option for long-term use.
For extreme environments or specific project requirements, galvanised or stainless steel options may also be considered, but aluminium remains the best all-round solution for durability, compliance, and ease of installation.
5. Installation Process & Structural Load Considerations
Designers and structural engineers need to ensure that the building can support the guard rail system without excessive modifications.
- Fixed guard rails are straightforward to install and provide instant fall protection.
- Foldable guard rails require a more detailed hinge mechanism and may involve additional reinforcement in some cases.
6. Cost & Budget Constraints
While safety is always a priority, budget constraints can influence decision-making.
- Fixed systems tend to have lower initial costs and are simpler to install.
- Foldable systems require a higher investment due to additional mechanisms but provide long-term benefits in aesthetics and functionality.
7. Integration with Other Safety Systems
Architects and designers should consider how the guard rail system integrates with other fall protection measures such as:
A well-designed safety system ensures seamless protection for workers at heights.
Applications – Where Are Roof Guard Rails Used?
Roof safety rails can be used across various industries to protect workers during:
- Satellite dish & antenna maintenance
- HVAC (Heating, Ventilation & Air Conditioning) system servicing
- Solar panel installation & maintenance
- Roof inspections & repairs
- Gutter cleaning & drainage work
- Skylight & rooftop window servicing
Australian Roof Guard Rail Regulations & Compliance
All roof safety rail systems must meet strict Australian Standards to ensure worker safety. Safetylyne’s guard rail systems comply with:
AS/NZS 1657:2018 – Fixed platforms, walkways, stairways & guardrails
- AS/NZS 1891.4:2009 – Industrial fall-arrest systems & safety harnesses
- Safe Work Australia Code of Practice – Managing the risk of falls at workplaces
Employers and building owners must provide compliant fall protection systems for anyone accessing rooftops. Non-compliance can lead to serious legal consequences, injuries, or fatalities.
Making the Right Choice for Your Project
Ultimately, the decision between a fixed or foldable guard rail depends on the building’s function, maintenance requirements, safety regulations, and design aesthetics.
- For industrial and commercial sites, fixed guard rails are often the preferred choice due to their constant protection and lower maintenance.
- For architecturally sensitive buildings or projects requiring a clean aesthetic, foldable guard rails provide a discreet, effective safety solution while remaining compliant.
At Safetylyne, we offer expert guidance to help you choose the most suitable guard rail system for your site.
Consult Roof Safety Experts to discuss your specific project requirements and find the best height safety solution for your needs.
